Strip and Pad

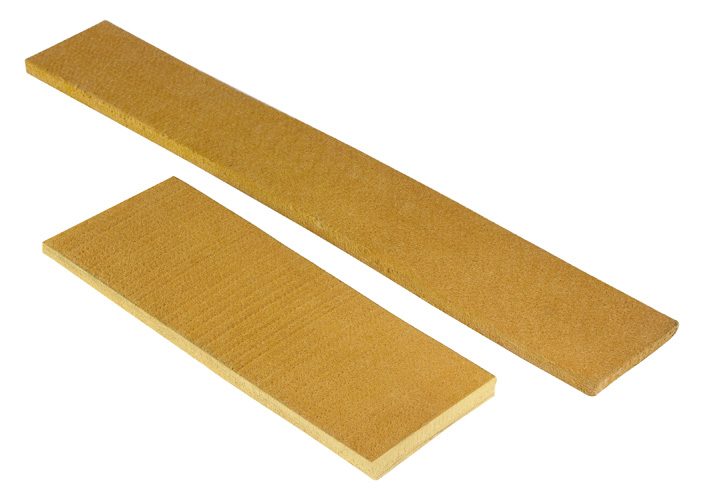

PBO Strip and Pad
 |
The properties are similar with those of PBO roller sleeve.
PBO pads are mainly used in the initial area as the substitute for graphite slats. However, the abrasion is very severe using this way, and it is recommended to use roller sleeves instead. The areas of using PBO strips are the high temperature zone (above 500°C) in the step-wise and parallel-moving cooling table for giant extruders (above 3000T).
Resin treatment is available on request for better abrasion resistance and longer service life.
|
Technical Data:
Color: pure brown or surface brown and yellow underneath
Working Temp.: 550°C for long time and 600°C for short time (within 15 min)
Overall Thickness: 5mm-15mm with regular products of 6mm, 8mm, 10mm
Width: 60mm-2000mm with regular products 60mm, 70mm, 75mm, 80mm, 100mm
Length: 200mm-30,000mm
Density: 380g/m2 • mm as standard, and customized up to 500g/m2 • mm

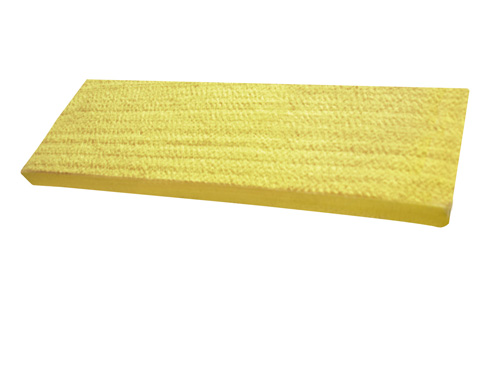

Para-Aramid Strip and Pad
 |
The properties are similar with those of Para-Aramid belt. Mainly used in the high temperature zone in the step-wise or parallel moving cooling table. Resin treatment is available on request for better abrasion resistance and longer service life.
Technical Data:
Color: Yellow, green
Working Temp.: 200°C for long time and 500°C for short time
(within 15 min)
Overall Thickness: 5mm-15mm with regular products of 6mm, 8mm, 10mm, 12mm
Width: 60mm-2000mm with regular products of 60mm, 70mm, 75mm, 80mm, 100mm
Length: 200mm-30,000mm
Density: 350g/m2 • mm as standard, and customized up to 500g/m2 • mm |

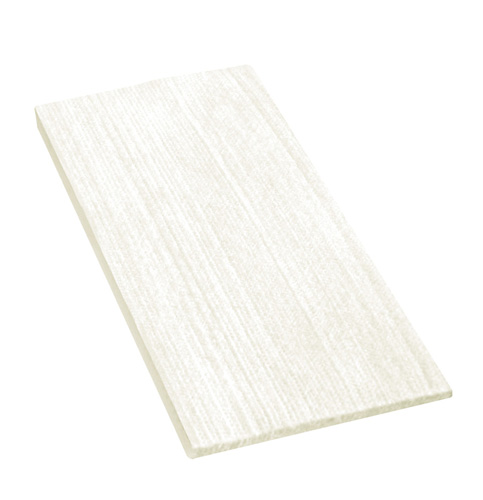

Meta-Aramid Strip and Pad
 |
The properties are similar with those of Meta-Aramid belt. Mainly used in the second-stage of the step-wise or parallel moving cooling table where the temperature resistance is around 280°C and wherever the pad is needed.
It can also be used as protection material in the profile baskets for aging oven.
Resin treatment is available on request for better abrasion resistance and longer service life.
Technical Data:
Color: White, light yellow (blending with Para-Aramid fiber)
Working Temp.: 250°C for long time and short time (within 15 min)
Overall Thickness: 5mm-15mm with regular products of 6mm, 8mm, 10mm
Width: 60mm, 70mm, 75mm, 80mm, 100mm
Length: 200mm-30,000mm
Density: For felt part 350g/m2 • mm as standard, and customized up to 500g/m2 • mm
|

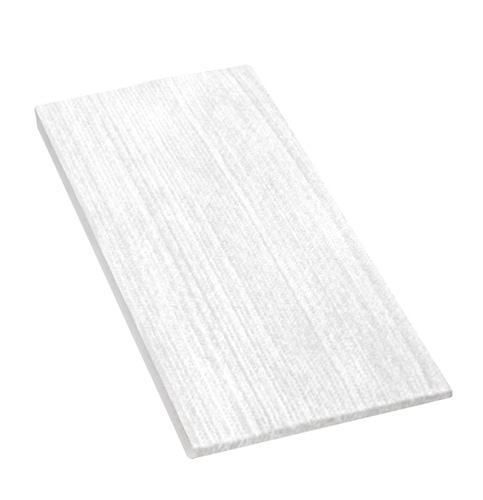

Polyester Strip and Pad
 |
The properties are similar with those of polyester belt. Mainly used for protection material to keep the profile from being scraped in Oxidizing or Packing Shop where the temperature is low. Some customers also use the strip in areas where the temperature is below 180°C in the second-stage of the step-wise or parallel moving cooling table (not recommended). Resin treatment is available on request for better abrasion resistance and longer service life.
Technical Data:
Color: White
Working Temp.: 180°C for long and short time (within 15 min)
Overall Thickness : 5mm-15mm with regular products of 6mm, 8mm, 10mm, 12mm
Width: 60mm-200mm with regular products of 60mm, 70mm, 75mm, 80mm, 100mm
Length: 200mm-30,000mm
Density: For felt part 350g/m2 • mm as standard, and customized up to 650g/m2 • mm
|
|
