PolySpek Junior Series

The PolySpek Junior from ARUN Technology benefits from over 25 years of experience in the application of CCD technology to spectroscopy, more than any other supplier of optical emission spectrometers for metal analysis. Designed, sourced, manufactured and calibrated in the UK, spectrometers from Arun Technology represent the state of the art in CCD based metals analyzers and a wide range of models.



Features


  1. Compact size, fits on a desk
  2. Low cost, high performance desktop unit
  3. Integrated Panel PC with touch screen
  4. Keyboard, mouse, touch screen operation
  5. Windows XP or Windows 7 operating system
  6. MetalScan A-PLUS software
  7. High resolution argon flushed optical system
  8. No vacuum pump
  9. Holographic diffraction grating
  10. High resolution CCD with 100000 iPixels
  11. Solid state spark source
  12. 16-bit Digitization
  13. USB Connectivity
  14. Integrated CD DVD RW drive


The PolySpek Junior, aimed at the entry end of the market, is equipped with a large CCD chip, integrated fast panel PC with a backlit color LCD display complete with enhanced analytical software, all operated from a touch screen. The PolySpek Junior is also available as a stand-alone spectrometer for use with an external PC.


Available Models

PolySpek Junior

  1. PS-J with wavelength coverage 170-410 nm
  2. Flushed or non-flushed depending on matrices
  3. Built in Panel PC

PolySpek Junior L

  1. PS-JL with wavelength coverage 170-780 nm
  2. Flushed or non-flushed depending on matrices
  3. Built in Panel PC



PolySpek Junior X

  1. PS-JX with wavelength coverage 170-410 nm
  2. Flushed or non-flushed depending on matrices
  3. For use with an external PC and LCD

PolySpek Junior XL

  1. PS-JXL with wavelength coverage 170-780 nm
  2. Flushed or non-flushed depending on matrices
  3. For use with an external PC and LCD



Working Principle

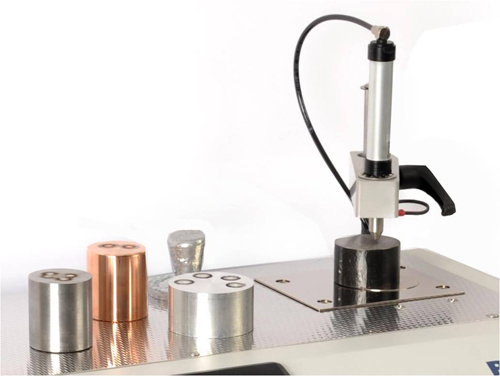

The operating principle of the PolySpek Junior is Optical Emission Spectrometry often referred to as ‘OES’. An electrical discharge is applied between the counter electrode and the surface of the prepared metal sample. This is carried out in an argon atmosphere inside the spark-stand and referred to as a ‘spark discharge’. Some of the sample surface material is vaporised releasing the radiation of light at specific wavelengths dependent on the elements present. Light from the spark passes into the spectrometer arrangement of the instrument. Here, CCD (charge coupled device) solid-state detectors measure the relative amplitudes of the different wavelengths of light. Processing of this spectral data yields the analytical results. The analysis program specifies which elements are to appear in the analysis and their concentration ranges. The analytical results appear as percentage values, against each element detected in the sample. Any element outside the programmed limits is highlighted. The values thus indicated should be regarded as estimates only.



 ARUN Technology Website : PolySpek Junior Series
